WAIN has always been committed to researching, developing and storing "watertight connector technology". After years of accumulation and precipitation, Vien has a variety of underwater connectors, which can realize the underwater connection of power, signal and optical fiber, covering the watertight application fields of dry plug and wet plug.
Weien Electric has advanced test instruments in testing, and the use of Xiamen University's deep-sea simulation equipment, simulate the working conditions in the sea, monitor the electrical performance and pressure shock resistance of the connector and simulate the sea plug and pull test.
WAIN watertight connectors can be widely used in subsea pipe laying equipment, underwater robots, underwater photography, etc., including rubber standard and miniature watertight series connectors, metal shell series and underwater plug-and-plug connectors.
This series of connectors has 4 different sizes of housing, the maximum number of cores is 25, the operating voltage is 300 ~ 600V, the operating current is 5 ~ 15A, the standard connector includes cable plug and panel mount socket and waterproof plug.
Made of high grade neoprene and navy brass, most plugs are backed by a waterproof SOOW flexible cable with a Teflon leather tail wire behind the socket. The locking cover is made of polyformaldehyde resin cast with stainless steel elastic clasp. Standard round 2-12 core connectors can also be vulcanized and installed on site.

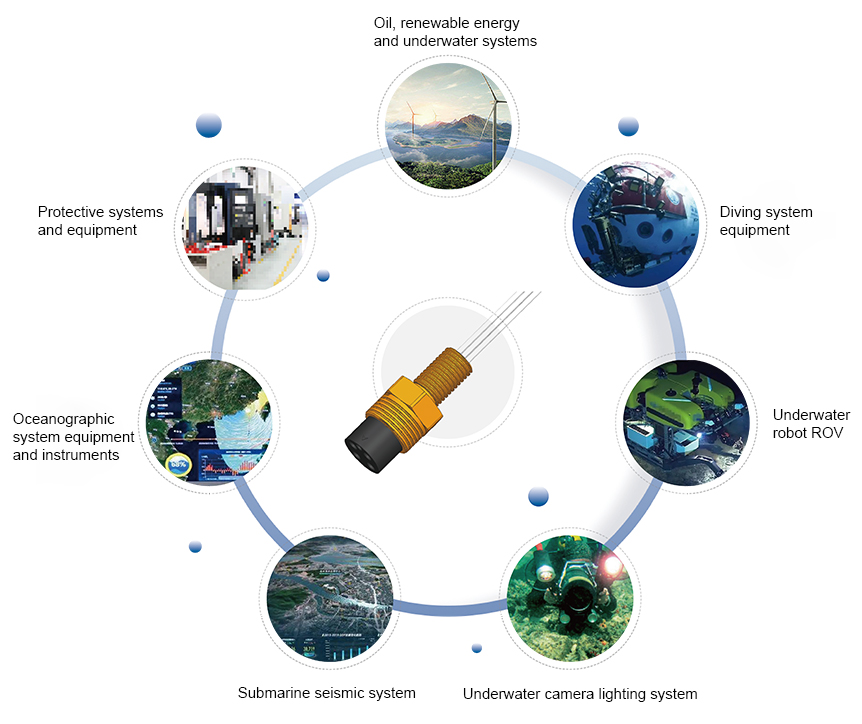

Application：
The miniature round series of plugs and receptacles has a pin range of 2-21 pins, rated voltage of 300V and current of 5-10A
The miniature round series uses high-grade neoprene as the main material, and the shell and base can be used in a variety of materials, including aluminum, stainless steel, titanium alloy and PEEK, depending on the corrosion resistance and depth grade. The material of the lock sleeve is POM, stainless steel, and so on...

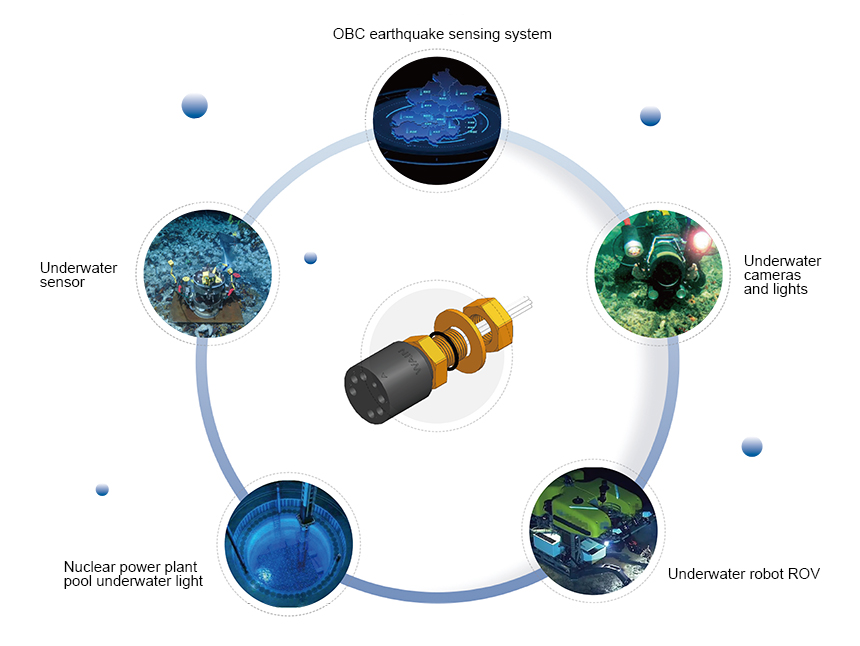

Application：
Introduction to WAIN watertight optical fiber connector
High precision ceramic pins achieve low loss requirements, using Oring and vulcanized sealing forms, with good sealing performance, suitable for underwater communication systems in harsh environments
WAIN underwater plug and pull connectors, each contact unit is protected by a double oil sac, with excellent sealing insulation and pressure balance performance. At the same time, a protective and sealing layer is also provided on the male end to avoid insertion pollution and improve the anti-interference performance of the underwater connector. The connector's self-locking and self-unlocking features ensure underwater safety and reliability
WAIN underwater connector product series continues to update, more product features and applications, welcome to contact our technical personnel.
